Memolub® EPS KNOWLEDGE BASE
Dimensions
Standard
120cc I 4oz
Mega
240cc I 8.1oz
Giga
480cc I 16.2oz
OIL R-500
500cc I 16.9oz
Precautions
INSIDE THE BOX
![ML 10005](/assets/uploads/Support/EPS/ML_10005.jpg)
MEMOLUB® EPS Pump
![ML 1204](/assets/common/ML_1204.jpg)
MEMOLUB® Housing Kit
![ML 1101 2](/assets/uploads/Support/HPS/ML_1101_2.jpg)
MEMOLUB® EPS Memo Kit
Settings & Installation
SETTINGS
MEMO COLOR COMBINATION | DOSING PERIODICITY | MAX. DAILY OUTPUT* | REFILLING FREQUENCY VS. CARTRIDGE CONTENT (120CC) | REFILLING FREQUENCY VS. CARTRIDGE CONTENT (240CC) | REFILLING FREQUENCY VS. CARTRIDGE CONTENT (480CC) |
---|---|---|---|---|---|
|
1 hour | 14.4 cm3/day | 0.25 month | 0.5 month | 1 month |
|
3 hours | 7.2 cm3/day | 0.5 month | 1 month | 2 months |
|
6 hours | 2.4 cm3/day | 1.5 months | 3 months | 6 months |
|
12 hours | 1.2 cm3/day | 3 months | 6 months | 12 months |
|
18 hours | 0.9 cm3/day | 4 months | 8 months | 16 months |
|
24 hours | 0.6 cm3/day | 6 months | 12 months | 24 months |
|
48 hours | 0.3 cm3/day | 12 months | 24 months | - |
*Maximum daily output without stroke washers.
VOLUME SETTINGS [cc/day]
By using stroke washers you can adjust the amount of lubricant discharged per pumping cycle.
NUMBER OF STROKE WASHERS* | MEMO RINGS COMBINATION | ||||||
---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
14.4 | 7.2 | 2.4 | 1.2 | 0.9 | 0.6 | 0.3 | |
![]() |
13.5 | 6.75 | 2.25 | 1.13 | 0.84 | 0.56 | 0.28 |
![]() ![]() |
12.6 | 6.3 | 2.1 | 1.05 | 0.79 | 0.53 | 0.26 |
2 ![]() ![]() |
11.7 | 5.85 | 1.95 | 0.97 | 0.73 | 0.49 | 0.24 |
3 ![]() ![]() |
10.8 | 5.4 | 1.8 | - | 0.68 | 0.45 | 0.22 |
4 ![]() ![]() |
9.9 | 4.95 | 1.65 | - | 0.41 | 0.21 | |
5 ![]() ![]() |
9 | 4.5 | 1.5 | - | 0.38 | 0.19 | |
6 ![]() ![]() |
8.1 | 4.05 | 1.35 | - | 0.34 | 0.17 |

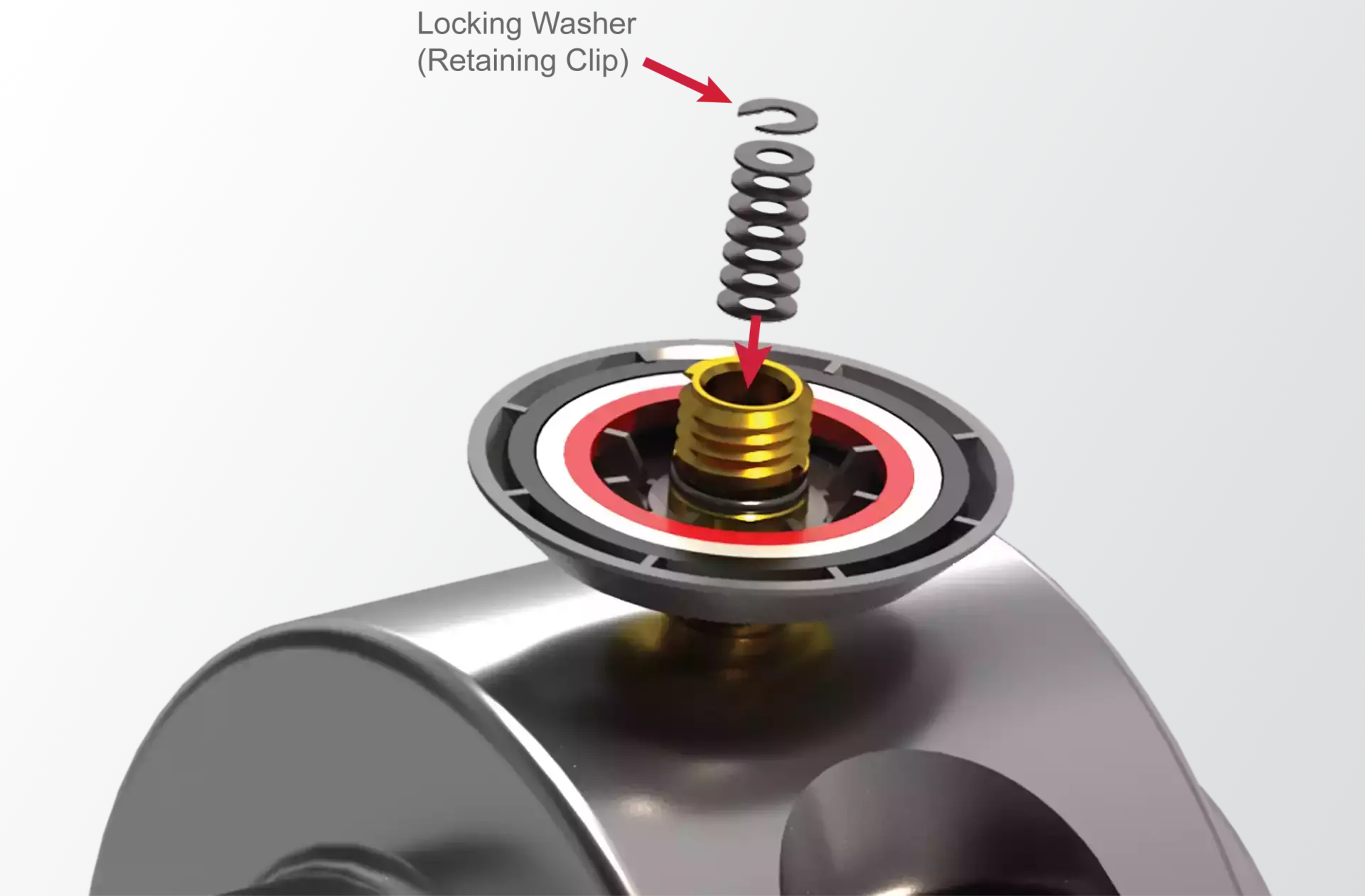

*The circlip must always be added on top of the washers
REMOTE INSTALLATION DISTANCES
TYPE OF INSTALLATION | MAXIMUM DISTANCE |
---|---|
Single point | 8m |
Multipoint | 6m |
Specifications
Electric Specifications
MEMOLUB® EPS | |
---|---|
Power Source | External Power Supply (min 15W - 0.6A) |
Voltage | 24V DC |
Short circuit protection | Yes |
Stroke duration | 8 seconds |
Minimum stroke interval | 15 minutes |
Other Specifications
MEMOLUB® EPS | |
---|---|
Temperature exposure range | -15°C to 50°C* |
Connections | 1/4 BSP |
Lubricants | Oil and Grease (up to NLGI #2 with an oil base between 100 and 460 cSt)** |
Maximum Stroke Presure | 25 bar / 350 PSI |
* Lubricant adapted for low temperatures.
** For any other viscosity level please contact your local distributor.
INSTALLATION GUIDELINES
DIRECT INSTALLATION
-
1
Prime lube point and remove nipple.
-
2

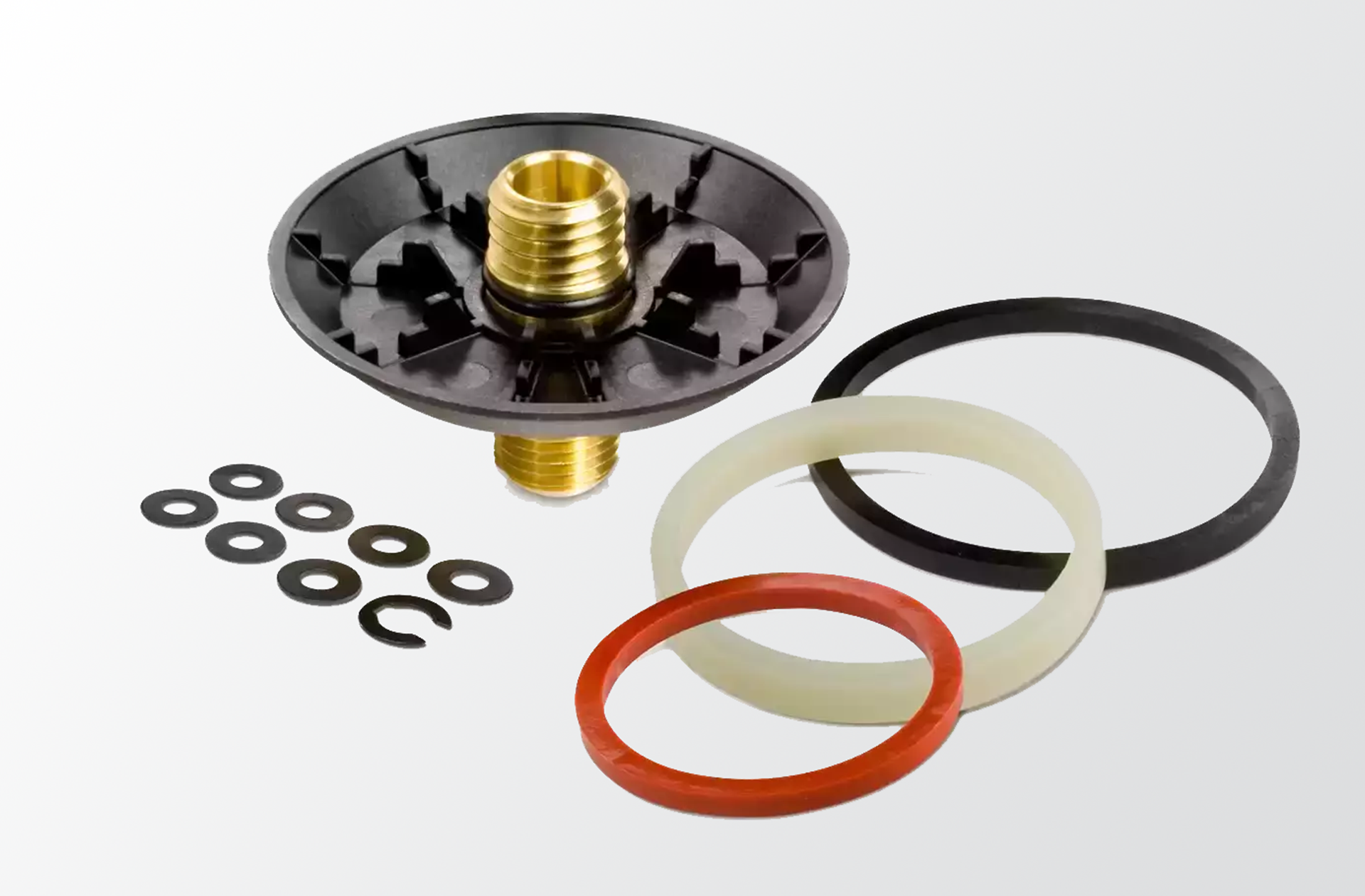

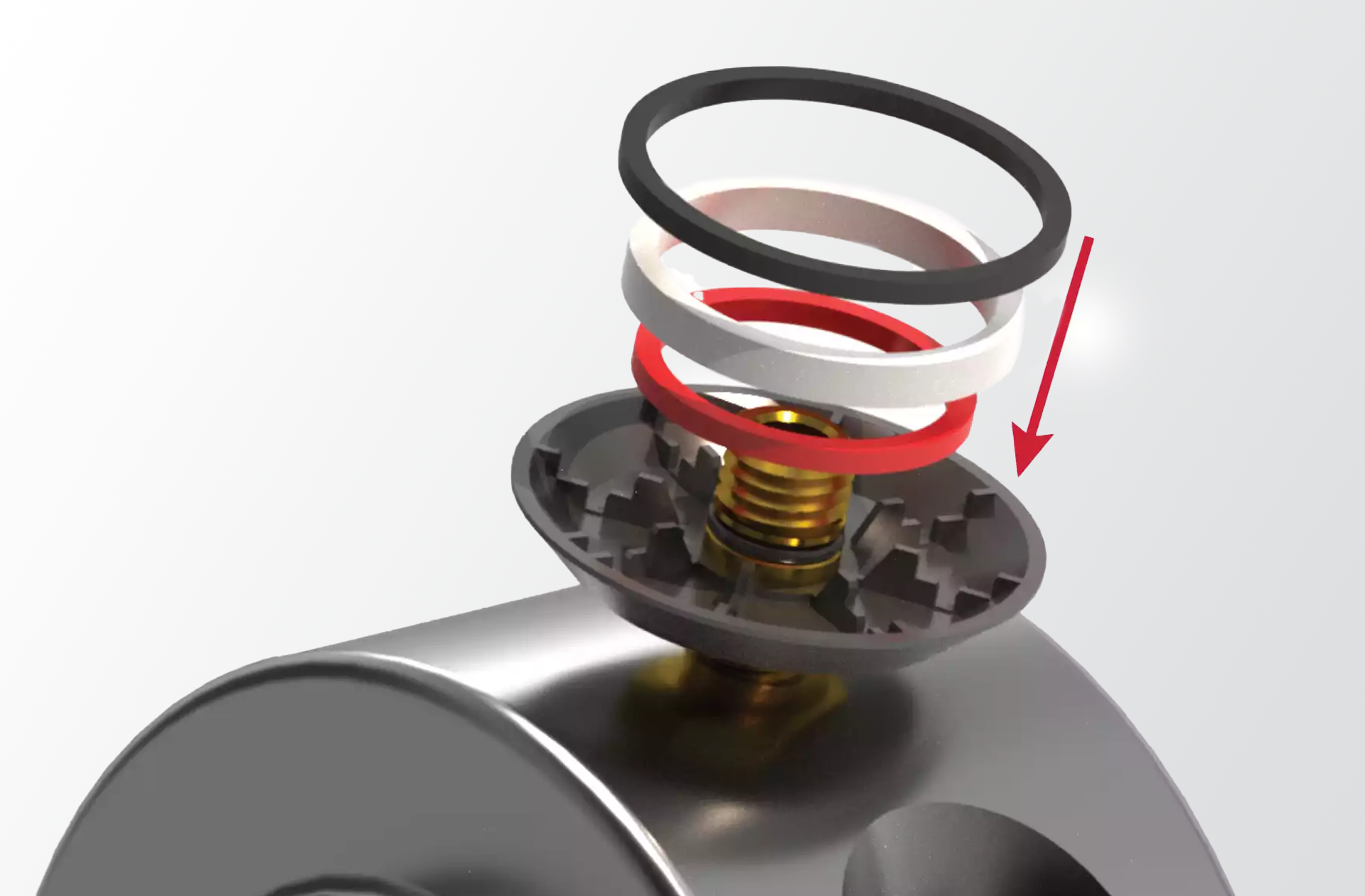

Install Memo on lube point using a strong threadlocker. Place the ring(s) in Memo according to "Settings" table above.
-
3
Install MEMOLUB® EPS on Memo. Connect the cable to the 24V DC power supply.
-
4
MEMOLUB® EPS works immediately.
REMOTE INSTALLATION
-
1
Prime lube point and remove nipple.
-
2
Secure the mounting bracket.
-
3
Install Memo and F1/4 fitting on bracket using a strong threadlocker. Place the ring(s) in Memo according to "Settings" table above.
-
4
Screw BSP 1/8 fitting on lube point.
-
5
Cut hose to required size.
-
6
Insert hose into Memo’s quick fitting.
-
7
Insert hose into lube point's quick fitting.
-
8
Install MEMOLUB® EPS on Memo. Connect the cable to the 24V DC power supply.
-
9
MEMOLUB® EPS works immediately.
CARTRIDGE REPLACEMENT GUIDELINES
-
1
Open (fingers on ribs).
-
2
Prime MEMOLUB® EPS pump.
-
3
Insert new battery pack and seal. NOTE: the battery seal can be removed for 480cc cartridges.
-
4
Squeeze air out of the cartridge.
-
5
Replace cartridge on MEMOLUB® EPS pump.
-
6
Close and lock (fingers on ribs).
FAQ
-
How can I test and/or check if MEMOLUB® EPS is functioning?
You can test and/or check whether MEMOLUB® EPS is working correctly at anytime by unscrewing MEMOLUB® from the MEMO by one turn and screwing it back. MEMOLUB® EPS will expulse once after being mounted to the MEMO.
If the environment is too noisy, unscrew MEMOLUB® EPS from its MEMO and, push on one of the three switches at the bottom of the housing for a few seconds. MEMOLUB® EPS will then make an expulsion to confirm that electronic, mechanical and batteries are ok.
Operate this operation three times pushing each switch at least once to ensure all three switches are operational and the complete gavage of the pump with the adequate lubricant. This operation has to be done with a cartridge inside the MEMOLUB® EPS.
-
What to do if my MEMOLUB® EPS automatic lubricator is not functioning?
Make a manual test of MEMOLUB® EPS by using a MEMO with the three rings in the ring-holder.
If MEMOLUB® EPS does not work, check the following:- Is the power supply ON?
- Does the power supply voltage have the right amplitude (24V DC) and polarity (brown=positive, blue=negative) ?
- Is there any discontinuity in the wiring?
- Are there one or more plastic rings inside the ring-holder? If not, no switch will be activated and MEMOLUB® EPS will not work. Make sure you insert them correctly as explained in the installation guidelines.
-
What to do when there is no lubricant coming out of my MEMOLUB® EPS?
If MEMOLUB® EPS does function, but no grease comes out of the automatic lubricator check the following:
- Is there a lubricant cartridge inside the MEMOLUB® EPS? If not, recharge the unit with a cartridge as described in the installation guidelines.
- Was the spring mounted correctly inside the transparent housing? If not, please mount it again as described in the installation guidelines.
- Is the pump of the MEMOLUB® EPS primed? If the cartridge of MEMOLUB® EPS was totally emptied before replacement, some air could have been sucked into the system and the pump would cavitate for a certain number of cycles. Place a grease handgun on the suction valve of the red housing and pump grease through the unit as explained in the installation guidelines.
-
What to do when the lubricant cartridge is not emptied correctly?
If MEMOLUB® EPS does function but the lubricant cartridge does not empty or not in the predicted timing there might be that of the following issues occurs:
- The piping is clogged: use a handgun to clear the pipes.
- One of the outlets of the distributor block has been voluntarily obstructed. Use bridging elements to reduce the number of outlets of a distributor block.
- The piping is damaged. Replace the piping.
- Counter pressure at the MEMOLUB® EPS outlet is higher than 13 bar: please respect the tubbing diameters, tubing lengths, the number of outlets per distribution block and the working temperatures. Also, use fittings with openings larger than 4mm (0.157").
- At working temperature, the base oil viscosity of the grease is higher than 10.000cSt. Please use low temperature lubricants.
-
What to do when the lubricant does not reach the lubrication point?
MEMOLUB® EPS does function and empties correctly, however no lubricant is reaching the lubrication point. Possible causes are:
- The piping might be damaged, please check and replace if necessary.
- A fitting is not correctly screwed or sealing is missing, please check and replace or add if necessary.
-
Does MEMOLUB® EPS needs specific maintenance?
MEMOLUB® does not require any specific maintenance. When used in humid or dusty atmospheres MEMOLUB® EPS can be cleaned with compressed air or a slightly humid rag. To clean MEMOLUB® EPS do not use solvents or plunge unit in any liquid. It is also possible to equip your MEMOLUB® EPS with a protection cover. For additional information, please contact your local MEMOLUB® dealer.
